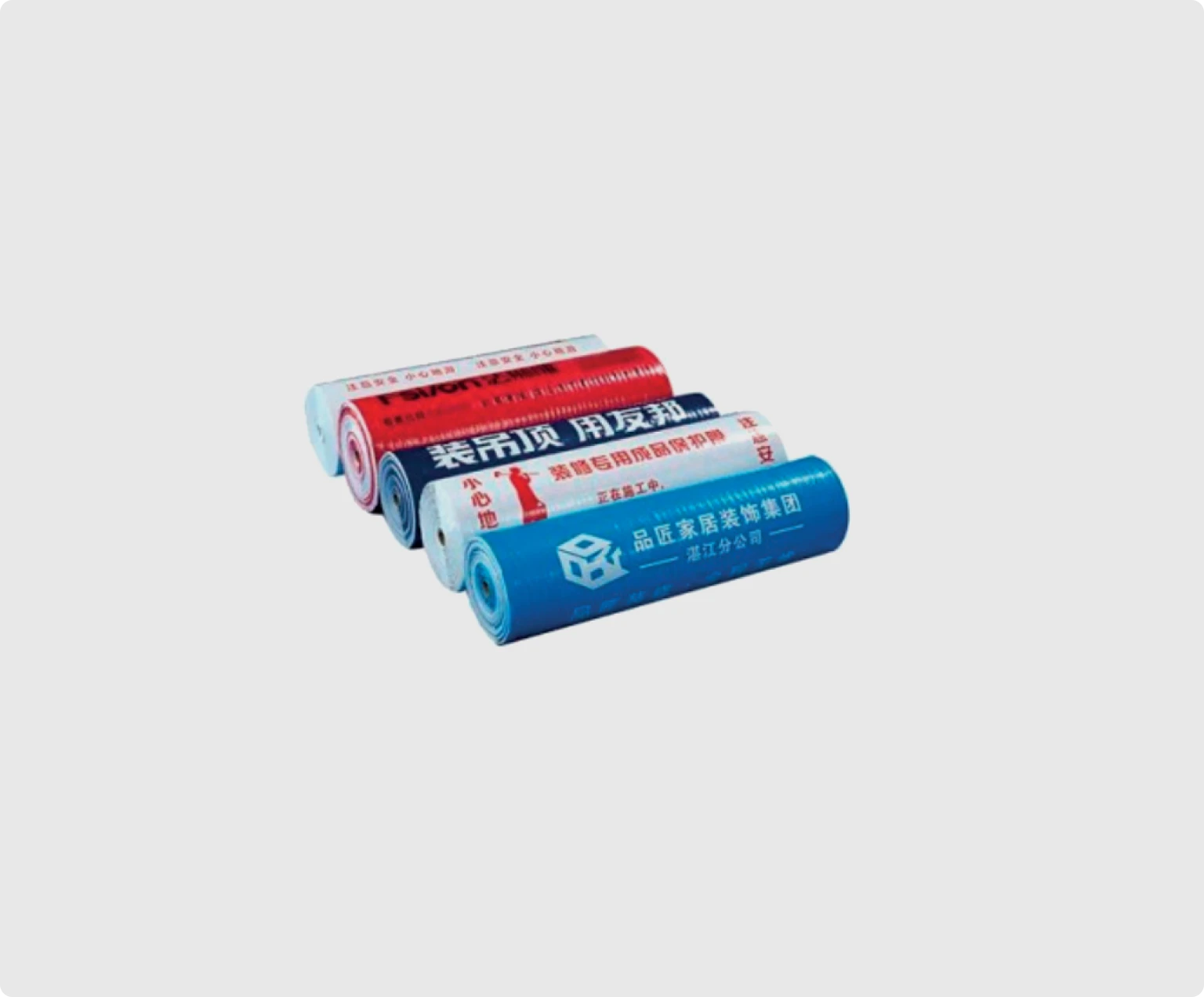

Non Woven Fabric Material

Industrial-grade virgin spunbond polypropylene nonwoven fabric engineered for high-speed automated converting, customized across a spectrum of GSM weights, widths, and functional treatments.

As a vertically integrated manufacturer, we extrude 100% virgin polypropylene (PP) resin into continuous filaments, thermally bonding them into a uniform, high-tensile non woven fabric material[cite: 1, 20]. This advanced spunbond process eliminates the mechanical constraints of traditional weaving, delivering a lightweight, highly breathable substrate that significantly reduces raw material costs for industrial converters[cite: 20]. Our production lines supply critical base textiles for the global packaging, medical hygiene, and agricultural sectors[cite: 20].

What defines commercial spunbond nonwoven material? It is an inert, binder-free polymer textile defined by its excellent Machine Direction (MD) and Cross Direction (CD) tear resistance[cite: 20]. Because we manage the polymer chemistry in-house, the base hydrophobic fabric can be engineered with secondary chemical modifications—including hydrophilic agents[cite: 1] for wet wipes or UV inhibitors for outdoor crop covers—ensuring seamless compatibility with automated secondary processing machinery[cite: 20].

100% virgin PP substrate guaranteeing safety, odor-neutrality, and zero chemical leaching[cite: 20].
Thermally bonded fiber matrix providing superior MD/CD tensile endurance[cite: 20].
Grammage optimized from ultra-light 10 GSM (medical) to heavy 150 GSM (industrial)[cite: 20].
Precision slit rolls up to 2.4 meters accommodating high-speed automated production[cite: 20].
Customizable treatments: hydrophilic, hydrophobic, anti-static, and UV stabilization[cite: 20].
Dye-in-melt color extrusion ensuring extreme fade resistance and color uniformity[cite: 20].
100% recyclable polymer structure aligning with enterprise sustainability mandates[cite: 20].

SEND YOUR INQUIRY

Spunbond Manufacturing Specifications

Parameter	Specification
Substrate Material	100% Virgin Polypropylene (PP) Resin[cite: 1, 20]
Manufacturing Process	Continuous extrusion spunbond, thermal calender bonded[cite: 20]
Fabric Grammage	Scalable production from 10 GSM to 150+ GSM[cite: 20]
Mechanical Properties	High Machine Direction (MD) and Cross Direction (CD) tensile strength[cite: 20]
Dimensional Profiles	Custom precision slit rolls from 0.2m up to 2.4m widths[cite: 1, 20]
Surface Characteristics	Uniform planar structure, high opacity, lint-free fiber matrix[cite: 20]
Chemical Treatments	Hydrophilic, hydrophobic, anti-static, flame retardant, UV stabilization[cite: 1, 20]
Color Calibration	Dye-in-melt masterbatch processing for exact Pantone (PMS) matching[cite: 20]
Primary B2B Applications	Secondary packaging, medical PPE, agriculture, furniture backing[cite: 20]
Testing & Compliance	ISO 9001 facility; 100% recyclable Type 5 polymer compliance[cite: 20]

Commercial Fabric Classifications

Advanced Thermal Bonding and Extrusion Dynamics

The structural integrity of our non woven cloth[cite: 1] initiates at the extrusion phase[cite: 20]. Within our manufacturing facility, virgin PP pellets are melted and forced through precision spinnerets, producing continuous micro-filaments[cite: 20]. Rather than interlacing these filaments on a mechanical loom, they are dispersed aerodynamically onto a continuous conveyor and immediately compressed through heated calender rolls[cite: 20]. This thermal bonding process yields a completely lint-free matrix with exceptional tensile endurance, optimized for high-volume mass production[cite: 20].

Optimization for Secondary Automated Converting

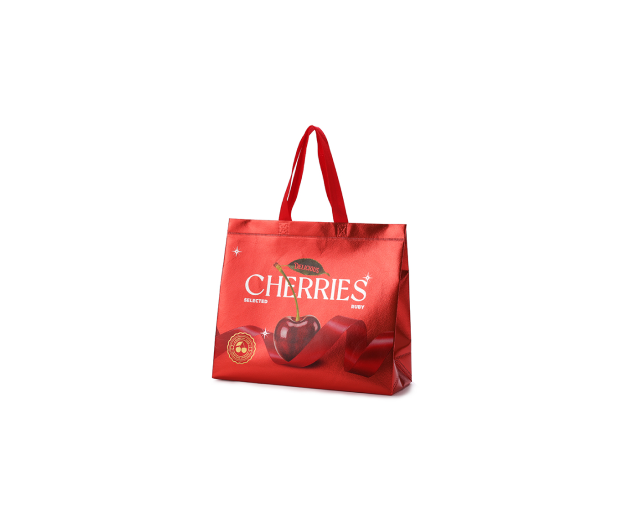

We engineer the physical geometry of the substrate roll to integrate flawlessly with downstream secondary processing[cite: 20]. Whether a converter utilizes automated ultrasonic sealing for eco-friendly shopping bags[cite: 1] or continuous web printing, our fabric provides clean dimensional cuts, secure thermal welds, and prevents mechanical jamming[cite: 20]. Masterbatch colorants are injected directly into the molten polymer (dye-in-melt), ensuring that the final printed nonwoven fabric[cite: 1] exhibits absolute color uniformity and superior fade resistance across the entire roll length[cite: 20].

Configuration Parameters for Industrial Sourcing

Customization Parameters for Bulk Roll Procurement

Specification Parameter	Engineering Options
Precision Slitting	Exact master roll slitting to any operational width under 2.4 meters.[cite: 20]
Fabric Density	Adjustable GSM calibration to balance procurement cost against required load-bearing capacity.[cite: 20]
Functional Chemical Finishes	Integration of UV inhibitors, flame retardants, anti-static compounds, or hydrophilic agents.[cite: 20]
Polymer Color Matching	Dye-in-melt masterbatch extrusion for exact corporate brand color replication.[cite: 20]
Logistical Packaging	Rolls sealed in protective PE film to guarantee a sterile, dust-free state during international transit.[cite: 20]

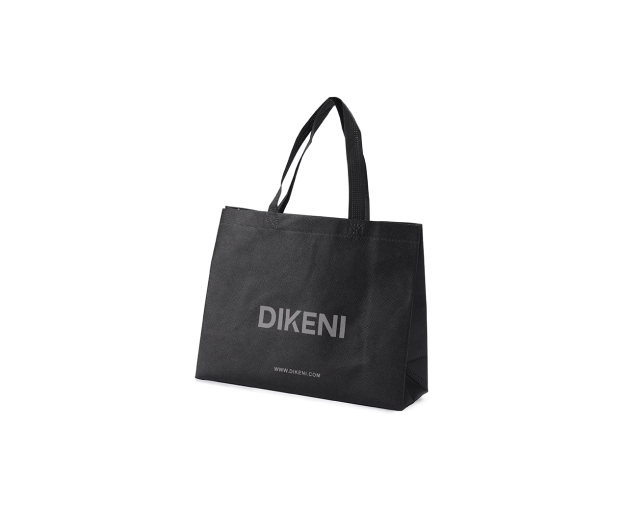

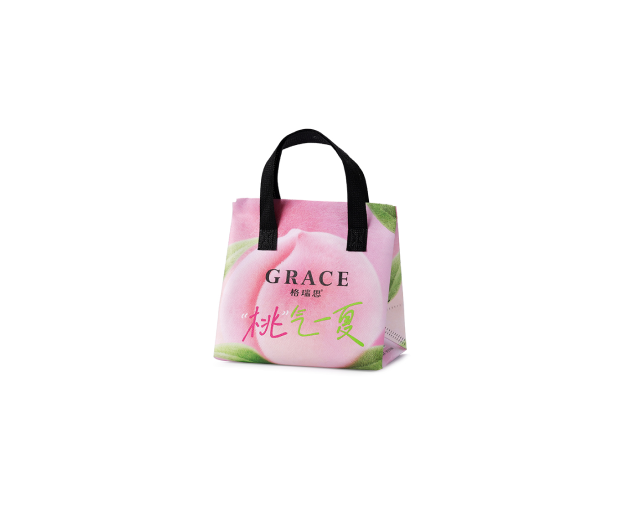

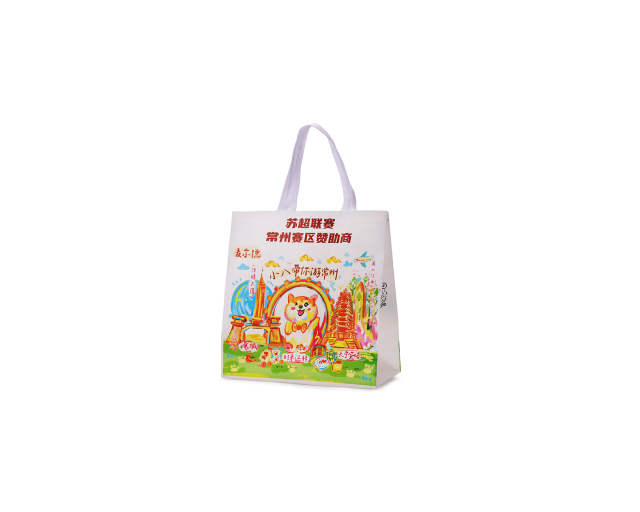

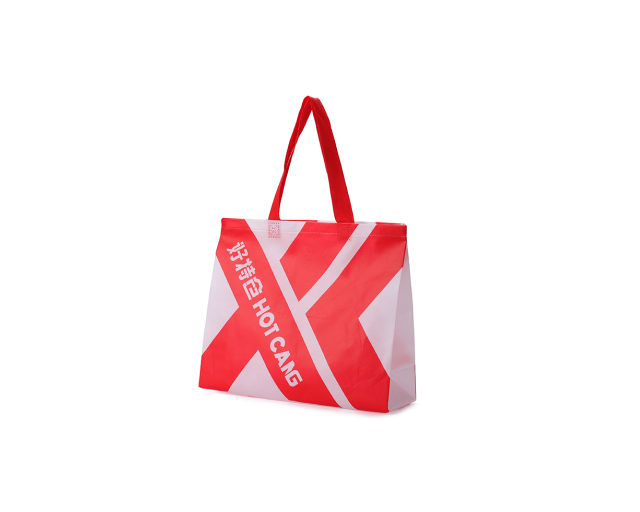

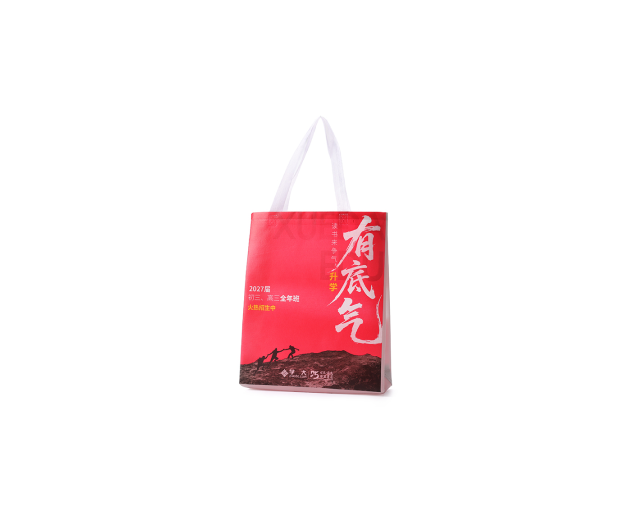

Commercial Deployment Projects

About Changyuan Nonwoven

We are a nonwoven fabric and bag manufacturer based in Changzhou, China, running a full production line from raw material to finished goods since 2012. Our factory handles fabric extrusion, 7-color gravure printing, lamination, and bag making in-house, serving clients in 20+ countries with a daily output of 200,000 pieces.

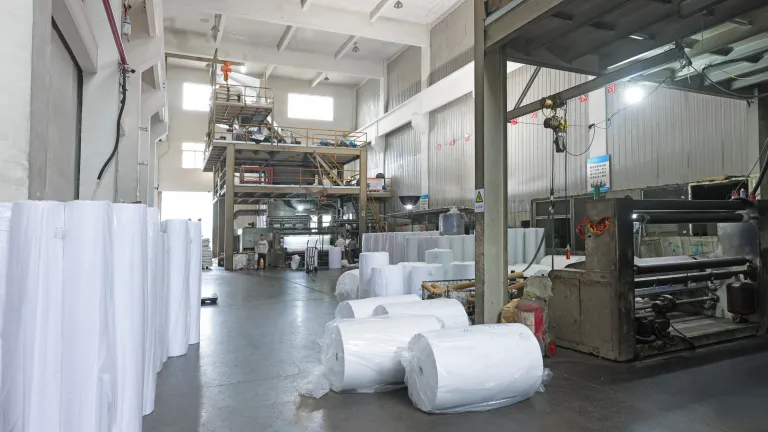

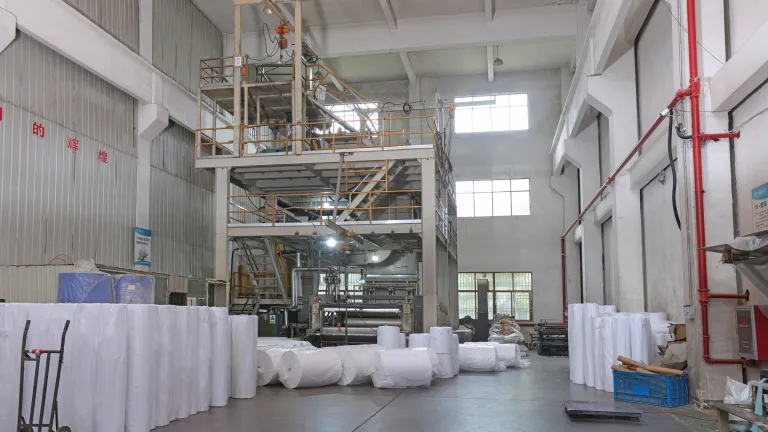

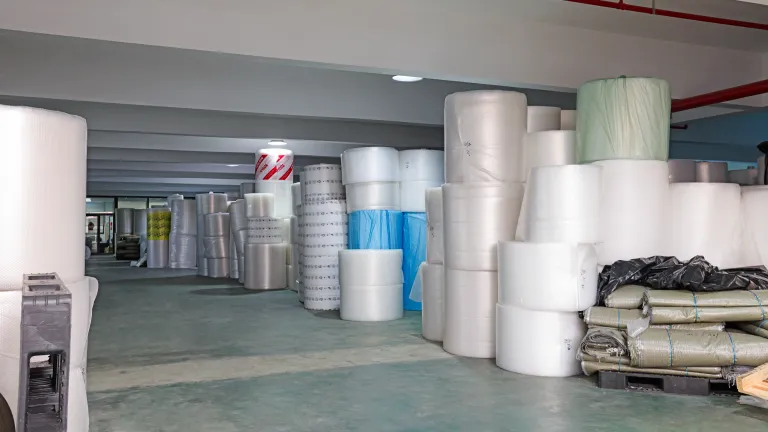

Company factory how we work

FAQs

What is the structural difference between woven textiles and spunbond nonwoven material?

Woven fabrics are manufactured by mechanically interlacing individual yarns on a loom, which is a slow, capital-intensive process[cite: 20]. Non woven fabric is engineered by extruding continuous polymer filaments and thermally fusing them together[cite: 20]. This creates a highly durable, lightweight, and cost-efficient matrix that can be produced at exceptionally high velocities[cite: 20].

Is virgin PP nonwoven fabric safe for medical PPE and food packaging?

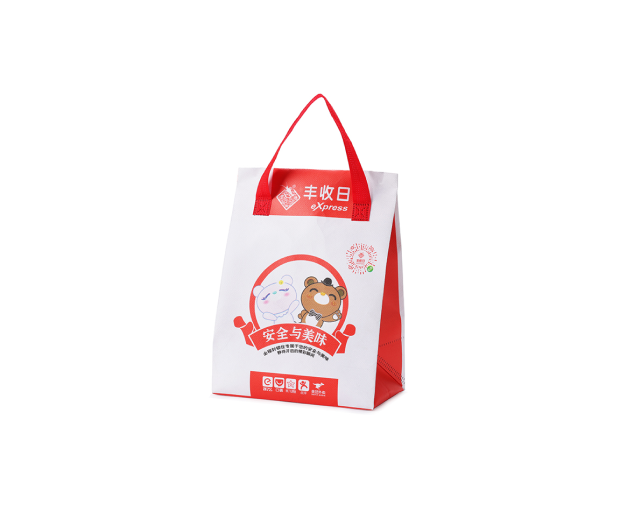

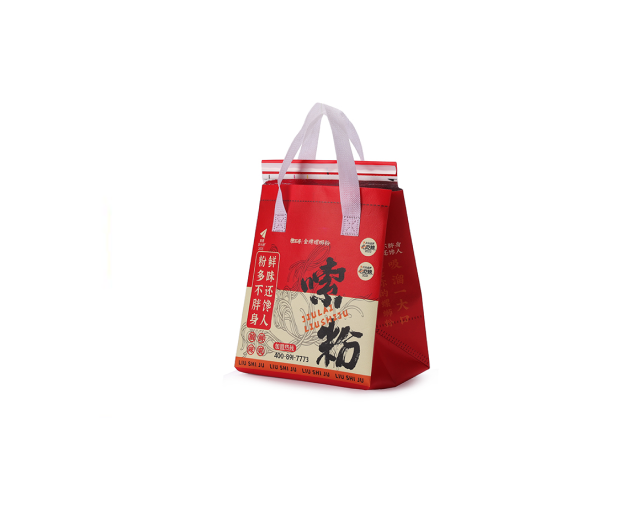

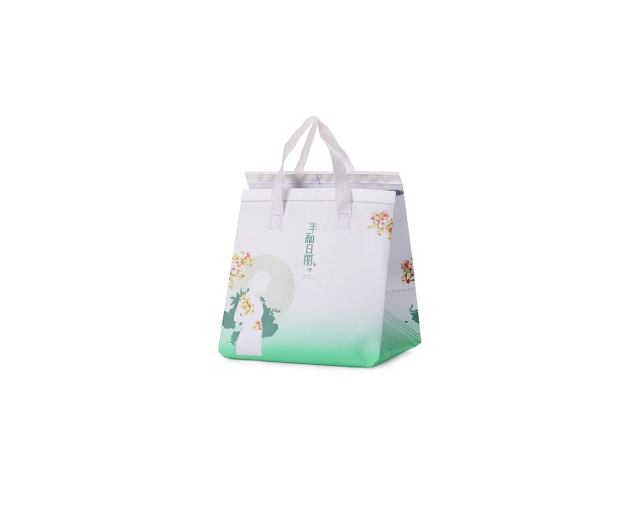

Yes. We extrude our spunbond material utilizing 100% virgin polypropylene resin, entirely eliminating toxic chemical binders or glues from the bonding process[cite: 20]. This ensures the resulting fabric is non-toxic, odorless, and strictly compliant for direct contact in medical apparel and food-delivery thermal bag[cite: 1] manufacturing[cite: 20].

Can the GSM (fabric density) be customized for specific automated production lines?

Absolutely. We calibrate the GSM directly during the extrusion phase[cite: 20]. Converters specify lightweight cloth (10-30 GSM) for delicate medical respirator layers, while specifying heavy, rigid substrates (70-150 GSM) for load-bearing retail bags and industrial furniture backing[cite: 20].

How do functional chemical treatments alter the spunbond fabric?

While base polypropylene is naturally hydrophobic (fluid-repelling), we integrate specialized additives during extrusion[cite: 20]. This allows us to manufacture fabrics that are hydrophilic (fluid-absorbing) for sanitary wipes, UV-stabilized for agricultural longevity, or anti-static for sensitive component packaging[cite: 20].

What roll dimensions are supported for wholesale manufacturing supply?

We maintain in-house precision slitting capabilities[cite: 20]. Master rolls can be produced up to 2.4 meters in width and then custom-slit to exact dimensional tolerances, ensuring seamless integration with the client's automated printing, cutting, or ultrasonic pleating machinery[cite: 20].

Does PP spunbond material align with corporate environmental sustainability mandates?

Yes. While spunbond fabric is derived from synthetic polymers, the manufacturing process requires exponentially less water and energy than traditional cotton processing[cite: 20]. Its high tensile strength promotes multi-cycle reuse, and at the end of its operational lifecycle, it is 100% recyclable within standard Type 5 plastic facilities, supporting circular economy initiatives[cite: 20].

Technical Guide: Specifying Non Woven Fabric Material

In B2B procurement, transitioning from traditional woven textiles to spunbond non woven cloth[cite: 1] drastically accelerates production velocities and reduces overhead[cite: 20]. The specification process demands precise alignment of the polymer's surface tension, fabric density (GSM), and mechanical roll dimensions to ensure zero disruption on automated converting lines[cite: 20].

Polymer Chemistry and Functional Adaptability

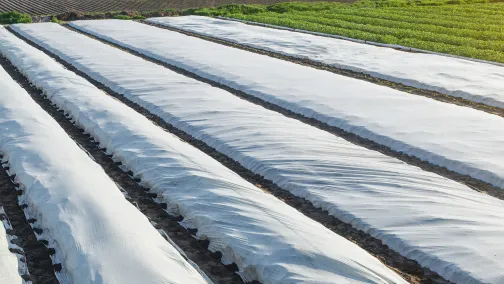

The inherent property of spunbond polypropylene is hydrophobicity (water repellency), which establishes it as the standard fluid barrier for medical isolation gowns[cite: 1] and construction wraps[cite: 20]. However, material engineering allows us to manipulate the polymer chemistry during extrusion[cite: 20]. By integrating specific surfactants or masterbatch additives, the identical base substrate can be transformed into a highly hydrophilic fabric[cite: 1] for sanitary diapers, a UV-stabilized mesh for agricultural shading[cite: 1], or an anti-static barrier for sensitive electronic packaging[cite: 20].

Optimizing Grammage (GSM) for Industrial Applications

Fabric density directly dictates the substrate's flexural tolerance and load-bearing capacity[cite: 20].

Fabric Density	Mechanical Behavior	Primary B2B Application
10–30 GSM	Extreme porosity, low kinetic resistance, highly pliable.[cite: 20]	Medical face masks (structural layers), light agricultural frost covers.[cite: 20]
40–70 GSM	Balanced tensile strength and high-speed folding tolerance.[cite: 20]	Promotional T-shirt bags, automated secondary packaging.[cite: 20]
80–150 GSM	Rigid drape, maximum puncture and tear resistance.[cite: 20]	Heavy-duty retail totes, furniture backing, spring mattress pocketing.[cite: 20]

Procurement Verification Parameters for Converters

For OEMs manufacturing consumer goods, the uniformity of the raw material is paramount[cite: 20]. A non woven fabric[cite: 1] roll must possess strict MD/CD tensile limits to prevent tearing during rapid ultrasonic welding or mechanical pleating[cite: 20]. We precisely calibrate the surface tension to guarantee optimal ink adhesion for converters utilizing high-speed silkscreen or gravure printing presses[cite: 20]. Furthermore, our in-house slitting capabilities[cite: 1] allow us to supply exact roll widths up to 2.4 meters, eliminating manual trimming and minimizing machine downtime for roll changeovers[cite: 20].
